- Suitable for manual positioning and clamping
- Application fields: machine, plant and fixture construction, toolmaking
- Advantage: knurled nut is tightened and loosened with tools

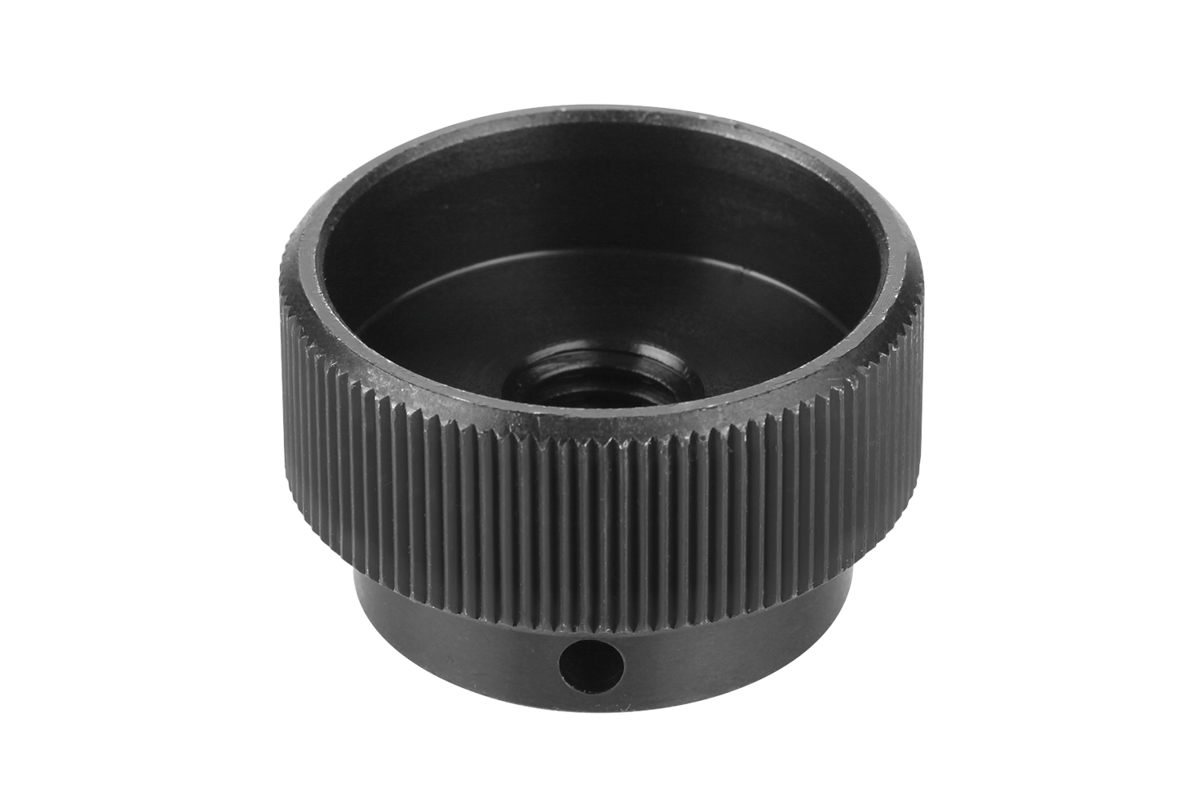

- Form B: with pin hole, steel
- Different thread sizes
Description
Material
Free-cutting steel black oxidised.
Note
Due to the better haptics, a larger pitch was chosen contrary to DIN.
Drawing reference
Form B: with pin hole
- Drill through and ream pin hole on assembly.
- Drill through and ream pin hole on assembly.
